Visible cool mist is expected from the HUL520. Honeywell narrows weak or missing output to tank water, level placement, mineral deposits on the nebulizer, a low power setting, or detergent residue left in the tank/base.
Does this match what you are seeing?
Owners often describe this same Honeywell MistMate HUL520 symptom in different words. These phrases all stay on this one model-specific guide rather than creating duplicate fix pages.
- Honeywell MistMate HUL520 not misting
- Honeywell MistMate HUL520 not producing mist
- Honeywell MistMate HUL520 stopped making mist
- Honeywell MistMate HUL520 has power but no mist
Check these in order
- Confirm the tank contains cool water and is seated securely on the base.
- Place the humidifier on a firm, flat, level, water-resistant surface.

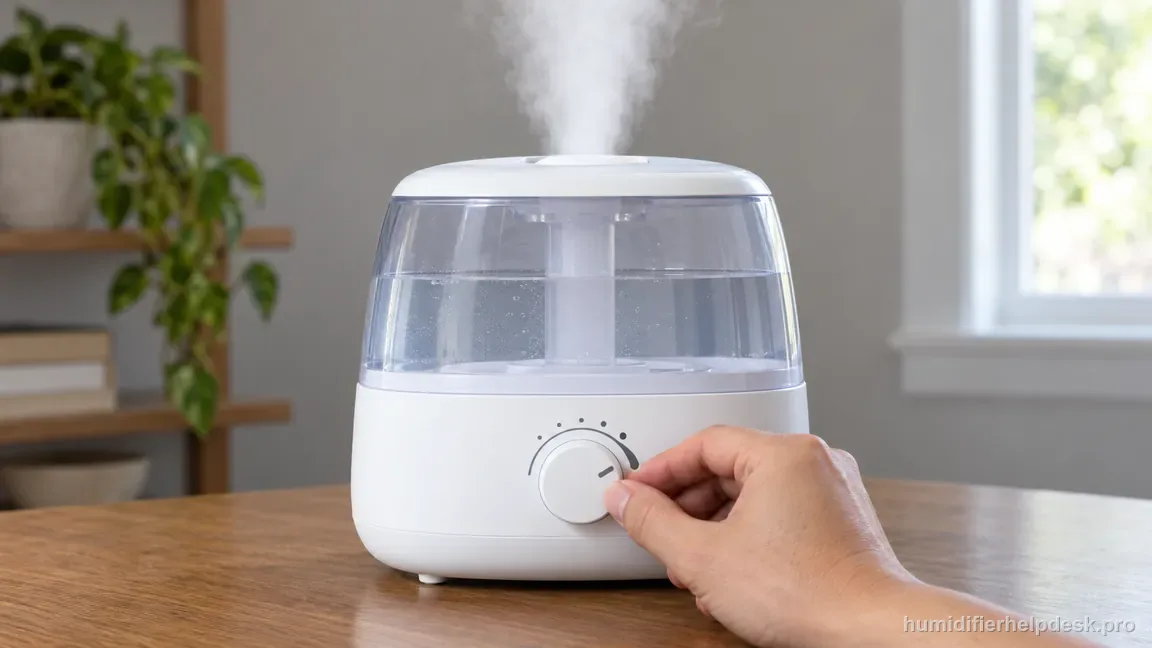

- Turn the Power Knob to the highest output for a controlled test.
- If scale is visible on the nebulizer or float, use the HUL520 vinegar scale-removal procedure.
- If the tank or base was washed with detergent, rinse with clean water until there is no foam or cleaning-solution smell.
Diagnostic decision path
The HUL520 is ultrasonic and Honeywell says it should produce visible cool mist, so “no mist” is a real output complaint rather than normal evaporative behavior. The exact model table gives a compact branch set: water, level placement, nebulizer scale, output setting, and detergent residue.

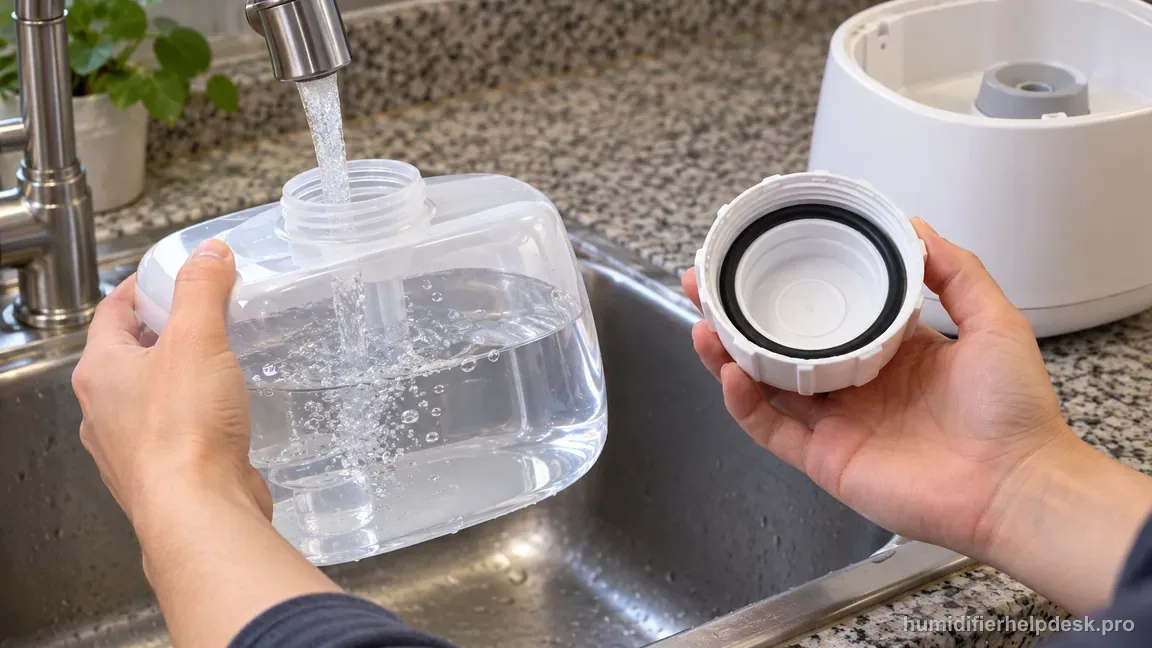

- Fill the tank with cool water and lock the Tank Cap with the black seal in place.
- Seat the tank securely on the base and keep the unit on a firm, flat, level surface.
- Start the comparison on the highest Power Knob setting so a low-output setting does not hide otherwise normal operation.
If: The tank is empty or not feeding the reservoir
What it means: The ultrasonic disk has no usable water path.
Do next: Fill the Water Tank with cool water, secure the cap/seal, reseat the tank, and retest.
If: The unit is tilted or sitting on a soft/uneven surface
What it means: The exact troubleshooting table lists an unlevel unit as a no-mist cause.

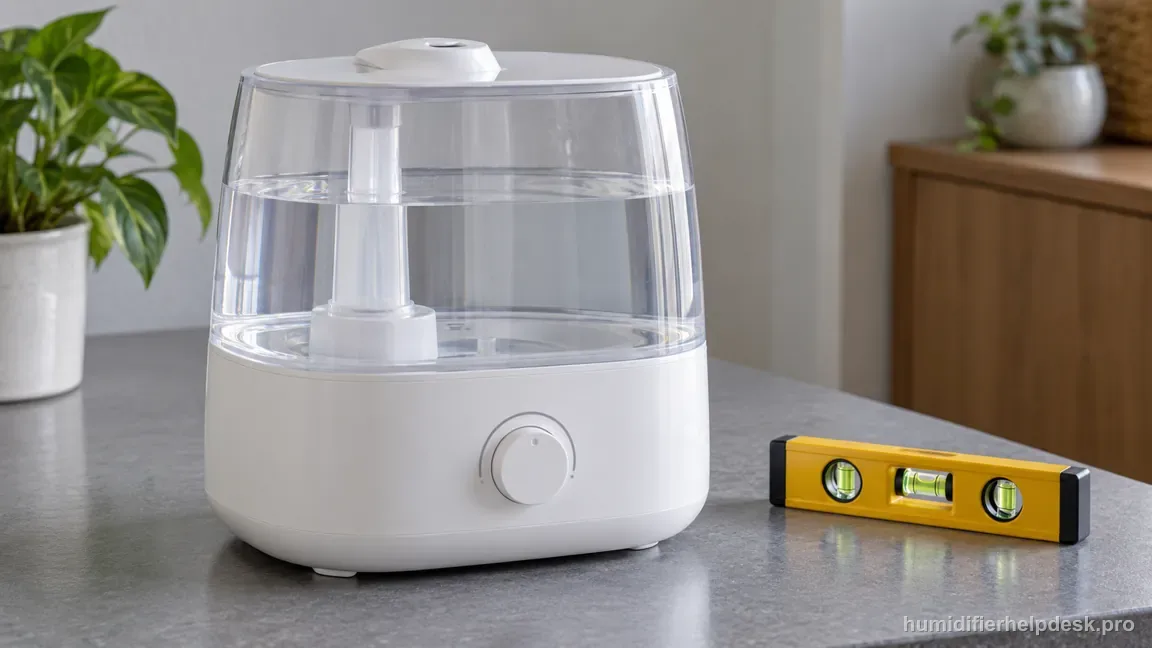

Do next: Move it to a firm, flat, level, water-resistant surface and retest.
If: Mineral scale is visible on the Nebulizer or Float
What it means: Scale can slow the ultrasonic water path enough to reduce visible output.

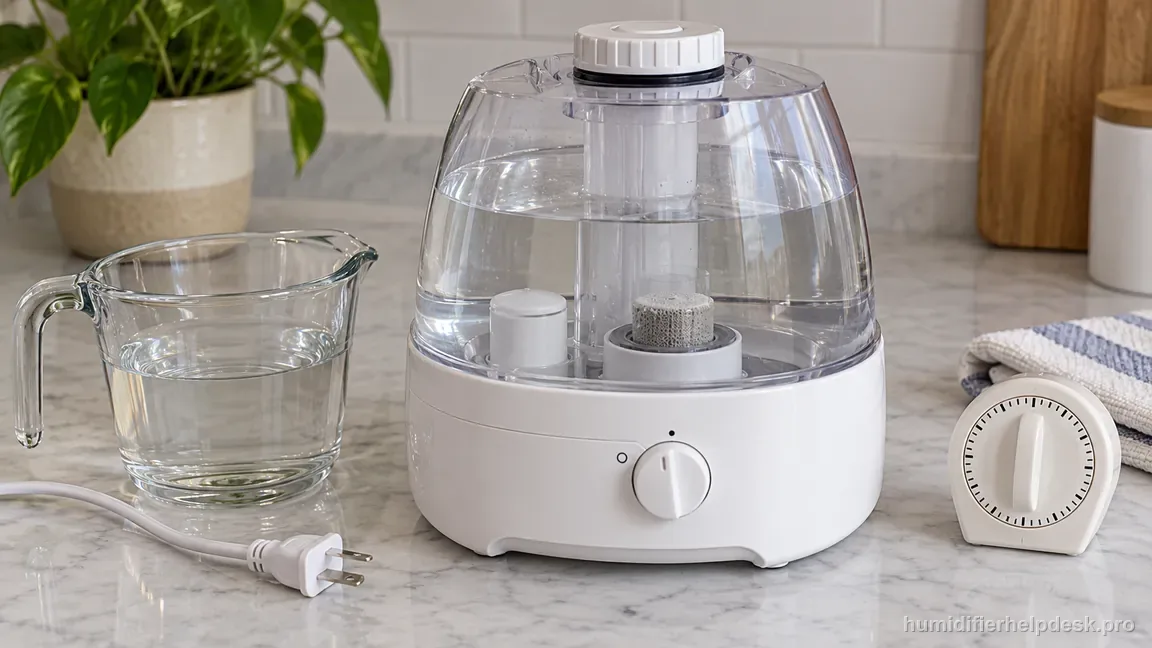

Do next: Run the HUL520 2-cup vinegar, 15–20 minute scale-removal procedure, rinse, reassemble, and retest.
If: Mist improves only after turning the knob higher
What it means: The original setting was simply too low for the visual/output expectation.
Do next: Choose the lowest setting that meets the room need rather than treating the unit as failed.
If: The problem started after washing with detergent and foam/odor remains
What it means: Detergent residue is a documented HUL520 cause of poor mist.

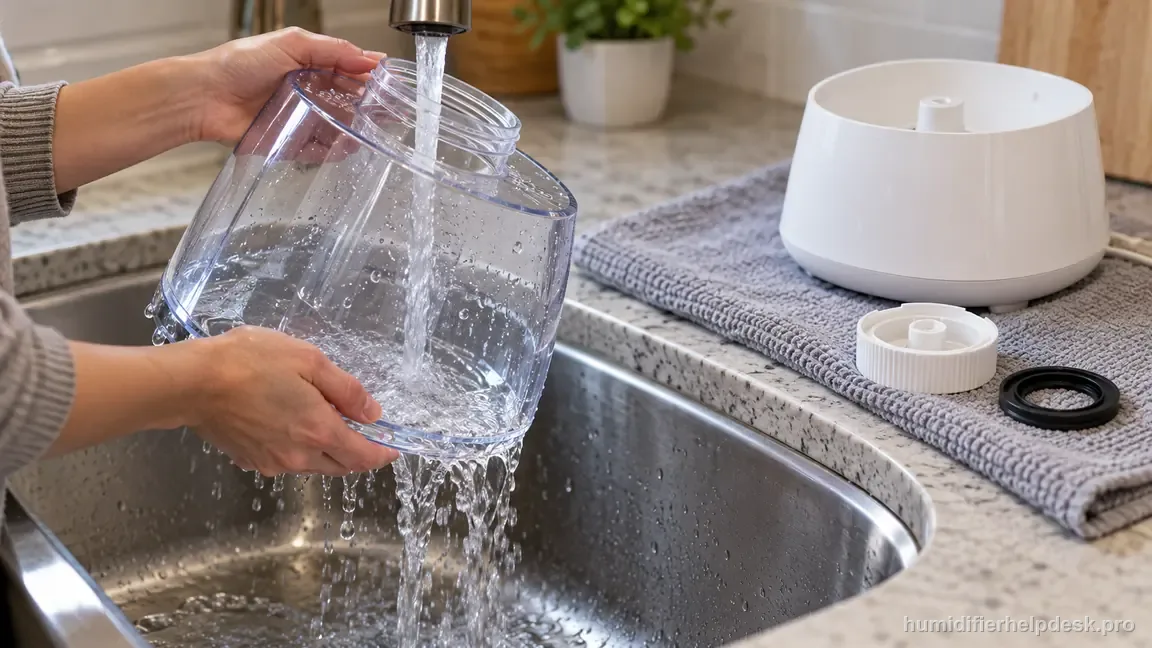

Do next: Rinse the tank and base thoroughly with clean water until no foam or cleaning-solution smell remains.
If: Water, level, scale, output, rinse, and seating checks all pass but mist is still absent
What it means: The exact user-serviceable causes have been exhausted.
Do next: Use Honeywell Consumer Relations instead of touching the powered nebulizer or opening the base.
How to interpret the retest
Use this explanation for the Honeywell MistMate HUL520 only when the unit actually shows “The tank is empty or not feeding the reservoir”. The Honeywell MistMate HUL520 source path describes that state as “The ultrasonic disk has no usable water path”. Check “Confirm the tank contains cool water and is seated securely on the base”, then reproduce the same complaint under otherwise similar conditions. When the observation matches, continue with “Fill the Water Tank with cool water, secure the cap/seal, reseat the tank, and retest”. If it does not match, this explanation does not fit the current Honeywell MistMate HUL520 little or no mist test.
On the Honeywell MistMate HUL520, use “The unit is tilted or sitting on a soft/uneven surface” as the observation to check first. On the Honeywell MistMate HUL520, the source-backed interpretation is “The exact troubleshooting table lists an unlevel unit as a no-mist cause”. Make “Place the humidifier on a firm, flat, level, water-resistant surface” the only deliberate change, then repeat the same symptom test. If the observation matches, continue with “Move it to a firm, flat, level, water-resistant surface and retest”; if it does not, note that this Honeywell MistMate HUL520 little or no mist path did not match and move on.
Model-specific context that changes the diagnosis
Two Honeywell MistMate HUL520 clues that point to different fixes
Separate these two observations before choosing the next action. When “The tank is empty or not feeding the reservoir” is true, the Honeywell MistMate HUL520 path points to “The ultrasonic disk has no usable water path”; use “Fill the Water Tank with cool water, secure the cap/seal, reseat the tank, and retest”. When “The unit is tilted or sitting on a soft/uneven surface” is the better match, the path changes to “The exact troubleshooting table lists an unlevel unit as a no-mist cause”, so use “Move it to a firm, flat, level, water-resistant surface and retest”. Retest one explanation before trying the action tied to the other.
Retest the Honeywell MistMate HUL520 without changing multiple variables
Keep the setup steady while you work through the next few checks. Test “Confirm the tank contains cool water and is seated securely on the base” first, then inspect the Honeywell MistMate HUL520 again. If the behavior persists, use “Place the humidifier on a firm, flat, level, water-resistant surface”; save “Turn the Power Knob to the highest output for a controlled test” for the next step. That order gives the Honeywell MistMate HUL520 little or no mist path a meaningful comparison instead of several changes with no clear cause.
Common mistakes that make this harder to diagnose
- Assuming “filter-free” means “maintenance-free”; mineral deposits on the Nebulizer are an exact documented cause.
- Running the humidifier with vinegar in it during descaling.
- Touching the Nebulizer while the unit is plugged in.
- Adding medication to the tank/base/mist outlet even though the HUL520 manual prohibits it.
The no-mist issue is resolved when the HUL520 produces stable visible cool mist from a correctly filled, level, clean unit at a normal Power Knob setting. Persistent no mist after the documented branches is the support boundary.
Questions people ask about this exact symptom
Why is my Honeywell MistMate HUL520 producing little or no mist?
For the Honeywell MistMate HUL520, visible cool mist is expected from the HUL520; Honeywell narrows weak or missing output to tank water, level placement, mineral deposits on the nebulizer, a low power setting, or detergent residue left in the tank/base. For this little or no mist check on the Honeywell MistMate HUL520, start with “Confirm the tank contains cool water and is seated securely on the base” and check the result before making another change.
What should I check first if my Honeywell MistMate HUL520 produces little or no mist?
Use the Honeywell MistMate HUL520 checklist as an ordered troubleshooting sequence, with one change at a time. Try “Confirm the tank contains cool water and is seated securely on the base”, retest, then move to “Place the humidifier on a firm, flat, level, water-resistant surface” and “Turn the Power Knob to the highest output for a controlled test” only as required.
When should I contact Honeywell about this Honeywell MistMate HUL520 problem?
If the Honeywell MistMate HUL520 still has the same problem after the manual-supported checks for little or no mist, contact Honeywell rather than disassembling the unit. Tell support what changed after the last little or no mist check on the Honeywell MistMate HUL520, and do not bypass any protection or interlock.
Why this path is model-specific
The exact HUL520 troubleshooting table lists no water, an unlevel unit, mineral deposits on the nebulizer, low power setting, and detergent residue for power-on with little/no mist. Honeywell’s current HUL520 FAQ repeats water, level, nebulizer scale, power, and tank seating as the first checks.
For the Honeywell MistMate HUL520, the machine type matters: it is ultrasonic. Visible mist is part of normal output when mist production is active, so a true no-mist complaint deserves model-specific troubleshooting.
This symptom appears on other humidifiers too, but the meaning and reset path can change by technology, sensor logic, and control layout. Use the exact model source above before borrowing a fix from a neighboring model.
Compare this symptom across verified models
If you are still deciding whether this behavior is normal or model-specific, use the symptom hub to compare only manufacturer-linked guides. Keep the Honeywell MistMate HUL520 instructions above as the controlling path for this machine.
If the problem is still there
If the checks above do not change the symptom, use the manufacturer support path for this exact model. We intentionally stop before undocumented resets, sensor bypasses, internal mains work, or parts replacement that the consumer manual does not authorize.
What we do not recommend
Do not defeat a float, water-level sensor, overheat protection, interlock, or other safety feature. Do not open mains-powered sections for live testing. If the unit smells burned, becomes abnormally hot, sparks, leaks into electrical areas, or repeatedly trips a circuit, unplug it and use manufacturer service guidance.
Primary source for this diagnosis
Source checked during the September 4, 2026 editorial review. Manufacturer documents can change; a material re-review updates this guide’s reviewed date rather than stamping unrelated pages.
