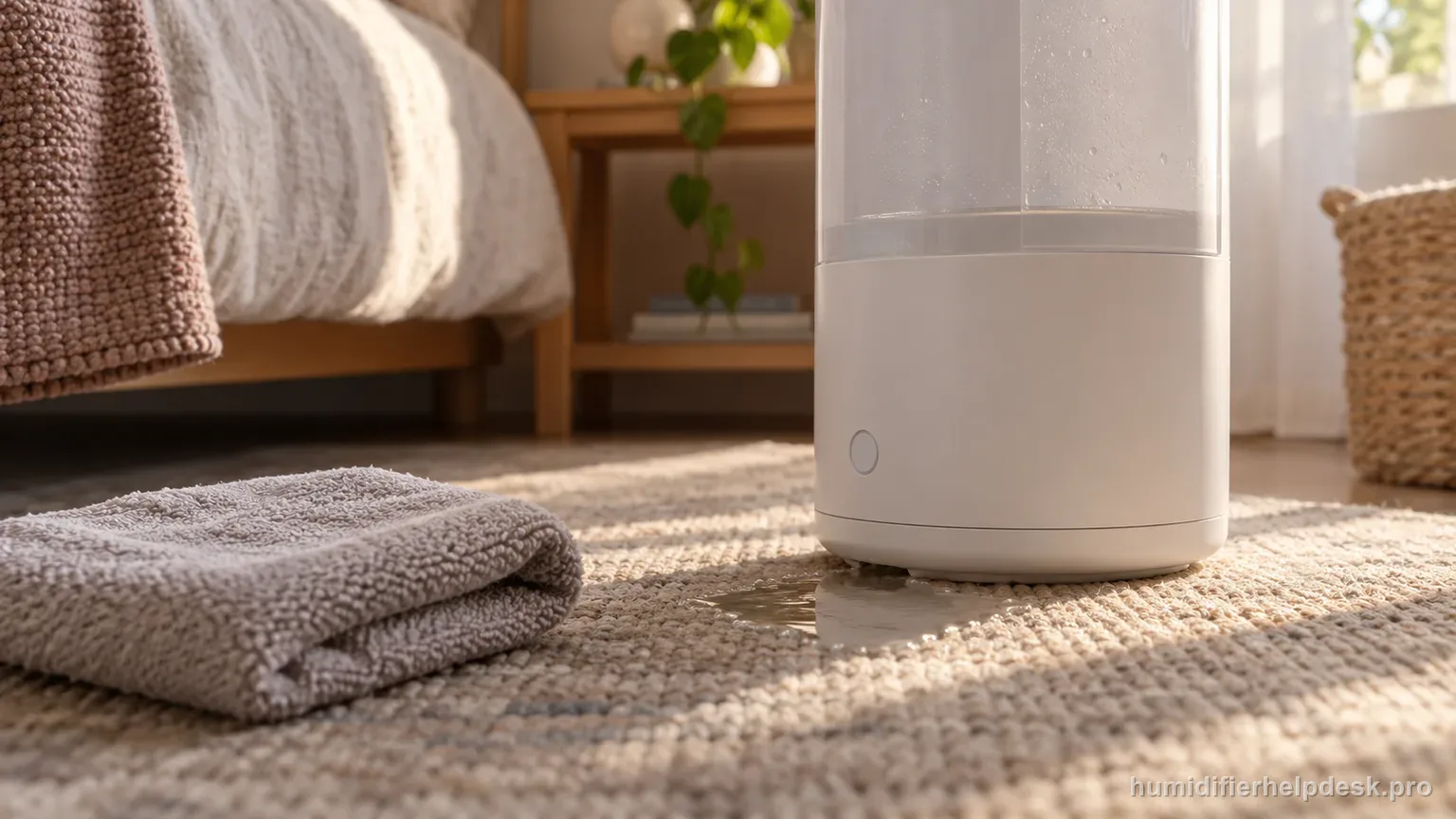

New-unit packing foam, float orientation, water-valve installation, or a cracked tank/base are the main HM524S leak checks.
Does this match what you are seeing?
Owners often describe this same Dreo HM524S symptom in different words. These phrases all stay on this one model-specific guide rather than creating duplicate fix pages.
- Dreo HM524S leaking water
- Dreo HM524S water under the base
- Dreo HM524S humidifier leaking from bottom
- Dreo HM524S reservoir leaking or overflowing
Check these in order
- Remove any shipping/packing foam still in the base.
- Confirm the float faces up and both prongs click into the brackets.
- Make sure the water valve is installed correctly.
- Inspect the tank and base separately for visible cracks.
Diagnostic decision path
Dreo’s HM524S leak checklist is unusually specific, which makes guesswork unnecessary: remove any packing foam, confirm float orientation and engagement, verify the water valve, then inspect the tank and base separately for cracks. The goal is to identify a simple assembly issue before treating the leak as a damaged reservoir.
- Unplug the HM524S and dry the exterior so fresh water is easier to trace.
- Do not keep running the humidifier while water is collecting near the powered base.
- Inspect the tank and base separately rather than assuming every puddle came from the tank.
If: Packing foam is still present in the base
What it means: Shipping material can interfere with the normal water path or component seating.
Do next: Remove the packing foam completely and reassemble the humidifier before another leak test.
If: The float is upside down or not clicked into its brackets
What it means: The float assembly is not in the position Dreo specifies.
Do next: Face the float upward, align the prongs with the brackets, and press until it clicks into place.
If: The water valve is not installed correctly
What it means: The tank-to-base feed can leak because the valve assembly is not seated as intended.
Do next: Reinstall the valve correctly, then perform a short stationary leak test.
If: A visible crack appears in the tank or base
What it means: The leak is structural rather than an adjustment problem.
Do next: Stop use and contact Dreo for support/replacement instead of patching a cracked water container near powered parts.
How to interpret the retest
Use “Packing foam is still present in the base” to select the next manual-supported check; the observation is not a diagnosis by itself. On the Dreo HM524S, it corresponds to “Shipping material can interfere with the normal water path or component seating”. Use “Remove any shipping/packing foam still in the base” and retest. When the observation is present, continue with “Remove the packing foam completely and reassemble the humidifier before another leak test”. When it is absent, rule out that explanation for now and keep the result with the current Dreo HM524S leaking notes.
Judge this correction by comparing the same symptom before and after it. Check “Confirm the float faces up and both prongs click into the brackets” on the Dreo HM524S, then look specifically for “The float is upside down or not clicked into its brackets”. A match supports the manual's interpretation “The float assembly is not in the position Dreo specifies” and sends you to “Face the float upward, align the prongs with the brackets, and press until it clicks into place”. If the observation is missing, that result narrows the Dreo HM524S leaking diagnosis without jumping to an unrelated reset.
Do not assign this cause until you have observed “The water valve is not installed correctly”. For the Dreo HM524S, use “Make sure the water valve is installed correctly” as the controlled test. If the same observation appears, the source meaning is “The tank-to-base feed can leak because the valve assembly is not seated as intended” and the next action is “Reinstall the valve correctly, then perform a short stationary leak test”. If it does not appear, record the non-match and continue through the remaining Dreo HM524S checks for leaking.
Model-specific context that changes the diagnosis
Two Dreo HM524S clues that point to different fixes
Choose the branch from the state you can actually have. If the Dreo HM524S shows “Packing foam is still present in the base”, the source-backed interpretation is “Shipping material can interfere with the normal water path or component seating” and the next step is “Remove the packing foam completely and reassemble the humidifier before another leak test”. If it instead shows “The float is upside down or not clicked into its brackets”, use the separate interpretation “The float assembly is not in the position Dreo specifies” and follow with “Face the float upward, align the prongs with the brackets, and press until it clicks into place”. On the Dreo HM524S, do not combine both responses; retest the explanation that matches the current leaking complaint first.
Retest the Dreo HM524S without changing multiple variables
Keep this retest simple: change one condition at a time. Test “Remove any shipping/packing foam still in the base” first, then inspect the Dreo HM524S again. If the behavior persists, use “Confirm the float faces up and both prongs click into the brackets”; save “Make sure the water valve is installed correctly” for the next step. That order gives the Dreo HM524S leaking path a meaningful comparison instead of several changes with no clear cause.
Common mistakes that make this harder to diagnose
- Leaving packing foam in a new unit.
- Flipping the float or forcing it into the brackets incorrectly.
- Trying sealants or glue on a cracked tank/base.
- Shaking or moving a filled unit during the leak test, which makes the source harder to locate.
The leak is resolved when the correctly assembled HM524S remains dry during a stationary test with the foam removed, float and valve installed properly, and no cracks present. Any structural crack remains a stop-use case.
Questions people ask about this exact symptom
Why is water collecting around my Dreo HM524S?
For the Dreo HM524S, new-unit packing foam, float orientation, water-valve installation, or a cracked tank/base are the main HM524S leak checks. For this leaking check on the Dreo HM524S, start with “Remove any shipping/packing foam still in the base” and check the result before making another change. If the behavior is unchanged, continue with “Confirm the float faces up and both prongs click into the brackets”.
What should I check first if my Dreo HM524S is leaking or leaving water outside the unit?
Change one documented condition, then judge the result before continuing. On the Dreo HM524S, begin with “Remove any shipping/packing foam still in the base” and observe the result. Continue to “Confirm the float faces up and both prongs click into the brackets”, then “Make sure the water valve is installed correctly”, only if the earlier step does not change the result. Keep the comparison simple enough that each result means something.
When should I contact Dreo about this Dreo HM524S problem?
Use Dreo support if the Dreo HM524S still has the same problem after the documented checks for leaking. Have the Dreo HM524S's last retest notes, current mode, and any warning light or code ready; tell support you followed the documented leaking checks. This safety boundary applies immediately at any point: “Do not patch a cracked tank/base that is leaking near powered components; use Dreo support/replacement guidance”.
Why this path is model-specific
Dreo’s HM524S FAQ gives the packing-foam, float, valve, and crack inspection sequence for leaks.
For the Dreo HM524S, the machine type matters: it is ultrasonic. Visible mist is part of normal output when mist production is active, so a true no-mist complaint deserves model-specific troubleshooting.
This symptom appears on other humidifiers too, but the meaning and reset path can change by technology, sensor logic, and control layout. Use the exact model source above before borrowing a fix from a neighboring model.
Compare this symptom across verified models
If you are still deciding whether this behavior is normal or model-specific, use the symptom hub to compare only manufacturer-linked guides. Keep the Dreo HM524S instructions above as the controlling path for this machine.
If the problem is still there
If the checks above do not change the symptom, use the manufacturer support path for this exact model. We intentionally stop before undocumented resets, sensor bypasses, internal mains work, or parts replacement that the consumer manual does not authorize.
What we do not recommend
Do not defeat a float, water-level sensor, overheat protection, interlock, or other safety feature. Do not open mains-powered sections for live testing. If the unit smells burned, becomes abnormally hot, sparks, leaks into electrical areas, or repeatedly trips a circuit, unplug it and use manufacturer service guidance.
Primary source for this diagnosis
Source checked during the September 3, 2026 editorial review. Manufacturer documents can change; a material re-review updates this guide’s reviewed date rather than stamping unrelated pages.
